Unique parallel taper target shaft

Micro DIAMETER ARROW

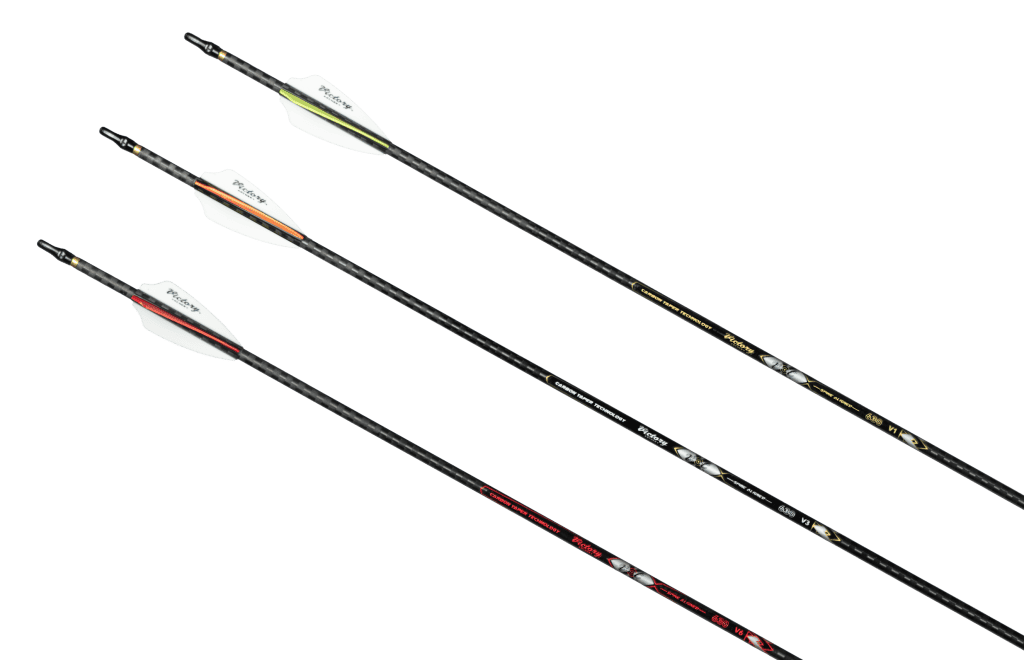

The VXT™ is an innovative top of the line target arrow – With a front-parallel, rear-taper design for supreme accuracy, high FOC, and faster arrow recovery in flight. This high modulus carbon fiber, micro-diameter shaft is less affected by wind and has a thinner, weaker tail section for improved clearance during launch. A 3K™ 90° carbon fiber weave reduces torsional deflection, improves durability and maintains precision straightness… end after end. Offered with premium 420 tool stainless steel points,* precision machined pin bushings and pin nocks, the VXT™ is the advantage you need to win gold.

V1

+/- .001″

V3

+/- .003″

V6

+/- .006″

SPINE GPI SHAFT LENGTH SHAFT ID FRONT OD MIDDLE OD BACK OD
300 8.3 31.0 0.166 0.241 0.236 0.212
355 7.4 31.0 0.166 0.237 0.229 0.207
450 7.4 31.0 0.166 0.236 0.230 0.210
550 7.1 31.0 0.166 0.234 0.228 0.210
630 7.4 31.0 0.166 0.235 0.229 0.209

Cutting from Front:  Weakens the arrow spine per table specs.  If the spine is too weak after cutting, length allowing, trim from rear to stiffen.  Front 9″ are constant diameter.  Do not cut more than 8 inches from front of arrow.

Cutting From Rear:  Stiffens arrow spine per table specs.  If the spine is too stiff after cutting, length allowing, trim from front to weaken.

Cutting equal parts from both ends will maintain the current spine.

*Every bow and arrow set-up varies.  Please use this as base guidelines for arrow tuning.

Arrow Features

MICRO DIAMETER ARROW – 100% carbon fiber construction for maximum speed and accuracy with less wind deflection

EVERY ARROW DIGITALLY SPINE ALIGNED FOR INCREASED ACCURACY AND SHOT TO SHOT CONSISTENCY

EACH DOZEN WEIGHT MATCHED TO +-0.5 GRAINS FOR PRECISE SHOT CONSISTENCY AND TIGHTER GROUPING

ADVANCED NANO CERAMIC ARROW COATING IMPROVES PENETRATION AND ALLOWS FOR EASY REMOVAL FROM TARGETS

Accessories

PIN NOCK 3GR (Included)
GOLD PIN BUSHING 12GR (Included)
SS BREAKOFF POINT 80 - 100GR (Optional)
SS BREAKOFF POINT 120 - 140GR (Optional)
